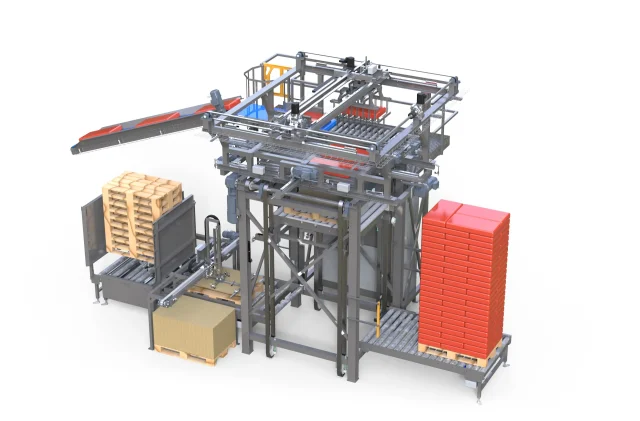

Palletizer VPC

Designed with a turn and sliding mechanism which places complete layers onto the pallet.

Technical specifications palletizer VPC

Suitable for	Bags, boxes, bales, growbags and more
Pallet height	Up to 3.000 mm
Volume/weight	1 – 50 kg
Capacity	Up to 2000 bags/hour
Bag type	Open mouth bags, tubular bags, valve bags, net bags and more
Product	Potting soil, bark, sand and gravel, stones, cocos, salts, fertilizers, chemicals, minerals, hydro grains, wood pellets, pet food, animal feed, powders, seeds, nuts, and legumes, premixes, granules, additives, rice, sugar, potatoes, onions, cat litter, flakes

Can process bags, boxes, bales, growbags and more
Stacking box to keep the load within the pallet size without overhang, for optimal efficiency in warehouses and containers and no bag damage or product loss
Each layer of bags can be compressed to guarantee a perfectly stable pallet
Bottom, intermediate or top sheet dispenser to create stability or prevent damaged bags
Servo-controlled turning and sliding system for controlled and accurate bag stacking
Optional air support system for zero friction with poorly flowing products such as sand, grit, stones and more
Pallet patterns are easily adjustable by a graphical representation in the touchscreen display
Options for equalizing or compressing the product for optimal stacking results
Optional corrosion protection for corrosive products
Automatic empty pallet dispenser
Optional solution with less buffering space for smaller footprint and lower capacities
Short changeover time and easy to operate
Low maintenance
Ethernet and Wi-Fi connection
